Elica ILLUS-PLS-16-WH Ceiling Integrated

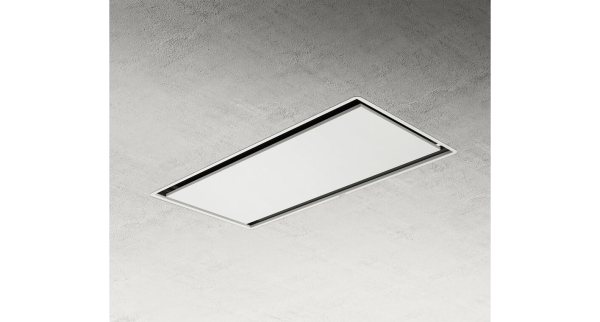

Elica ILLUS-PLS-16-WH Ceiling Integrated Extractor – White

The Elica ILLUS-PLS-16-WH Ceiling Integrated Extractor offers a sleek and discreet ventilation solution for modern kitchens. Designed to be installed flush within the ceiling, this elegant extractor keeps the cooking area visually open while effectively removing steam, smoke and cooking odours. Finished in white with a matching frame, it blends seamlessly into contemporary kitchen designs, making it ideal for open-plan spaces and island cooking areas.

Part of Elica’s innovative Illusion Plus range, this model combines powerful extraction with intelligent technology. It features three speed levels plus two booster settings, allowing you to quickly clear the air during heavy cooking. Advanced features such as AIRMATIC air-quality sensors, adjustable LED lighting and smart connectivity ensure efficient, quiet and convenient operation for everyday use.

Key Features

Feature	Description
Ceiling Integrated Design	Flush-mounted installation allows the extractor to sit neatly within the ceiling for a clean and minimalist kitchen appearance.
3 Speeds + 2 Booster Levels	Multiple extraction settings provide powerful ventilation for everyday cooking and intensive cooking sessions.
Powerful Extraction	Maximum airflow up to approximately 720 m³/h effectively removes steam, smoke and cooking odours.
Remote Control Operation	Convenient remote control allows easy adjustment of extraction speeds and lighting.
AIRMATIC Smart Sensor	Automatically detects air quality and adjusts extraction power to maintain a fresh kitchen environment.
Comfort Silence Technology	Designed to maintain strong performance while keeping noise levels low.
LED Lighting with Tune White	Two LED lights allow brightness and colour temperature adjustment for optimal cooking illumination.
Wi-Fi Connectivity	Connect to the Elica app or compatible voice assistants for smart control and monitoring.
Long-Life Filters	Regenerable filters designed for extended durability and easy maintenance.
Ducted or Recirculating Installation	Flexible installation options to suit different kitchen layouts.

Technical Specifications

Specification	Details
Model	ILLUS-PLS-16-WH
Product Type	Ceiling Integrated Cooker Hood
Finish	White
Control Type	Remote Control / Smart Connectivity
Speed Settings	3 Speeds + 2 Booster Levels
Maximum Extraction Rate	720 m³/h
Extraction Rate (Normal Use)	Up to 540 m³/h
Noise Level	51 – 74 dB
Lighting	2 × 14W LED Lights (Dim Light & Tune White)
Energy Efficiency Class	A
Annual Energy Consumption	Approx. 59.9 kWh/year
Grease Filters	Aluminium Grease Filters
Duct Size	220 × 90 mm
Installation Type	Ducted or Recirculating
Height	160 mm
Width	1000 mm
Depth	500 mm
Total Power Absorption	293 W
Warranty	2 Years Parts & Labour

Ideal For

Open-plan kitchens and island hob installations
Minimalist kitchen designs requiring discreet extraction
Modern homes wanting powerful ventilation without visible hoods
Luxury kitchens with integrated ceiling appliances

Product Summary

The Elica ILLUS-PLS-16-WH Ceiling Integrated Extractor combines powerful ventilation with a clean, minimalist design that disappears into the ceiling. Featuring smart connectivity, automatic air-quality sensing, quiet operation and adjustable LED lighting, it offers a sophisticated and highly effective extraction solution for modern kitchen environments.

Please call Paul Davies Kitchens & Appliances for any more information 01204 387767.

More Information

Delivery_estimate	Call for Availability
Manufacturer	Elica
availability	Out Of Stock
Colour	White
Energy Rating	A Rated New
Product Type	Hoods
Standard Warranty	2 Years
Noise Level(dB)	68
Width (cm)	100
Appliance Width	100cm
